Monacor
Oppladbar høyttaler med håndtak
Oppladbar høyttaler med håndtak
TXA-820
Vi sender vanligvis dette produktet innen en uke
Fra Monacor kommer TXA-820. På avstand ser det ut som en vanlig aktiv høyttaler. Men hvis du ser nærmere etter, finner du hjul og håndtak, noe som tyder på at denne høyttaleren kan rulles som en koffert.
Selvfølgelig kan du bruke TXA-820 som en hvilken som helst aktiv høyttaler. Men det er som høyttaler, som en rullekoffert, den kommer til sin rett.
Det innebygde batteriet varer i omtrent 5 timers drift.
Her får du 2 mikrofoninnganger, en linjeinngang, og en AUX/Bluetooth-inngang. I tillegg har TXA-820 en innebygd trådløs mottaker slik at du kan koble til en annen (trådløs) mikrofon.
Les mer
Les mer
ABOUT
Portable amplifier system, with integrated 1-channel multifrequency receiver unit with UHF PLL technology and Bluetooth receiver.
Operation via mains connection or built-in rechargeable lead gel battery 2 x 12 V/4.5 Ah (operating time: up to 5 hours), integrated automatic battery charging with charging status indication, discharge protection
For mobile applications, e.g. sales events, lectures
16 selectable UHF frequencies (863-865 MHz) with diversity system
Efficient 2-way speaker system

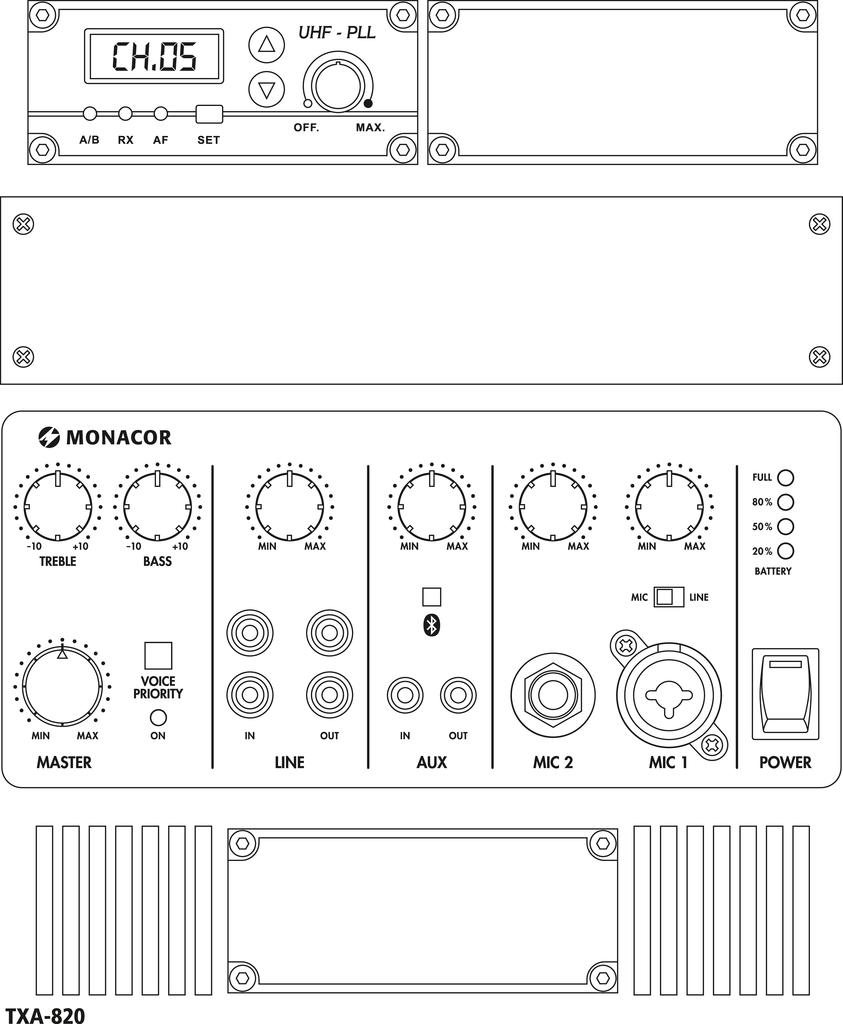

1 microphone input via comb. jack (XLR/6.3 mm), 1 microphone input (6.3 mm jack), 1 stereo line input (RCA), 1 aux input (3.5 mm jack), each input can be adjusted
Common master control, 2-way tone control
1 stereo line output (RCA), 1 aux output (3.5 mm jack)
Switchable microphone priority circuit

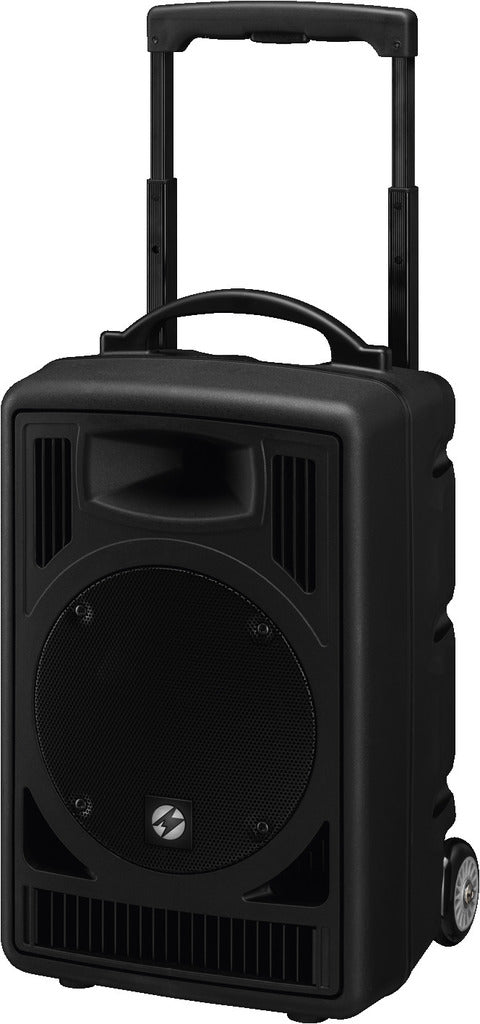

Due to an extractable telescopic handle and 2 castors, the amplifier system can easily be pulled like a trolley
Stand sleeve
Licence-free in the EU.
Matching microphone transmitters or pocket transmitters are available at option, e.g. TXA-800HSE, TXA-800HT or ATS-12HT.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Warning and Safety Instructions
The device is supplied with dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Risk of electric shock!
Do not use this device and disconnect it immediately from the power supply if the device or the power supply cable is visibly damaged, if a defect might have occurred after the device was dropped or suffered a similar accident, if malfunctions occur. Any repairs must be carried out by specialists.
The product is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity (admissible ambient temperature range is 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated in the device must be dissipated by air circulation. Never cover the air vents of the housing.
If the device is to be put out of operation definitely, dispose of the product in accordance with local regulations.
Never put (rechargeable) batteries in the household waste. Always dispose of the batteries in accordance with local regulations.
Spesifikasjoner
Spesifikasjoner
SPECIFICATIONS
Rated power (PRMS) 50 W
Peak output power 80 W
Frequency range 70-17,000 Hz
Carrier frequency 863-865 MHz
Operating range ≈ 30 m
Inputs 6 mV (mic),
300 mV (line)
Link optional (TXA-820MT)
Max. SPL 114 dB
Equalizer, bass ±10 dB/100 Hz
Equalizer, treble ±10 dB/10 kHz
Power supply ˜ 230 V/50 Hz/130 VA,
rech. battery 2 x 12 V/4.5 Ah
Admiss. ambient temp. 0-40 °C
Dimensions 305 x 510 x 265 mm
Weight 14.5 kg
Connections 1 x XLR/6.3 mm jack (mic/line),
1 x 6.3 mm jack (mic)
1 x RCA L/R (line out),
1 x 3.5 mm jack (line out)
